Difference between Top-Down and Bottom-Up Integration Testing

July 2, 2024
5 mins
Share this post

When it’s a matter of ensuring the smooth functionality of complex software, integration testing is an essential step in its development phase. Among different approaches, top-down and bottom-up integration testing stands out as two primary methodologies.

A leading software testing company always prefers to use these techniques to offer distinct benefits and challenges depending on the structure and nature of the software being tested.

Here, we will understand the key differences between bottom-up and top-down integration testing, and how software testing companies can use them to deliver reliable and robust software solutions.

Frustrated with Frequent App Performance Issues?

Upgrade to seamless speed & reliability with our testing.

Integration Testing- Brief Overview

Integration testing is the process after unit testing and it follows the process of generating communication between different software modules after they are designed, developed, and integrated.

Software testers check the connected components to analyze whether they have any compatibility issues or not. Often, such things can arise between components because of software-hardware incompatibility and information transfer.

Testing professionals can use several automation tools to perform integration testing. Some popular tools are Pytest, Selenium, Protractor, and Testsigma. They are open-source tools and provide different in-house alternatives and use cases for testing purposes.

Using the integration testing process, testers can easily find errors in the module group. It’s an agile methodology that follows the sprint technique.

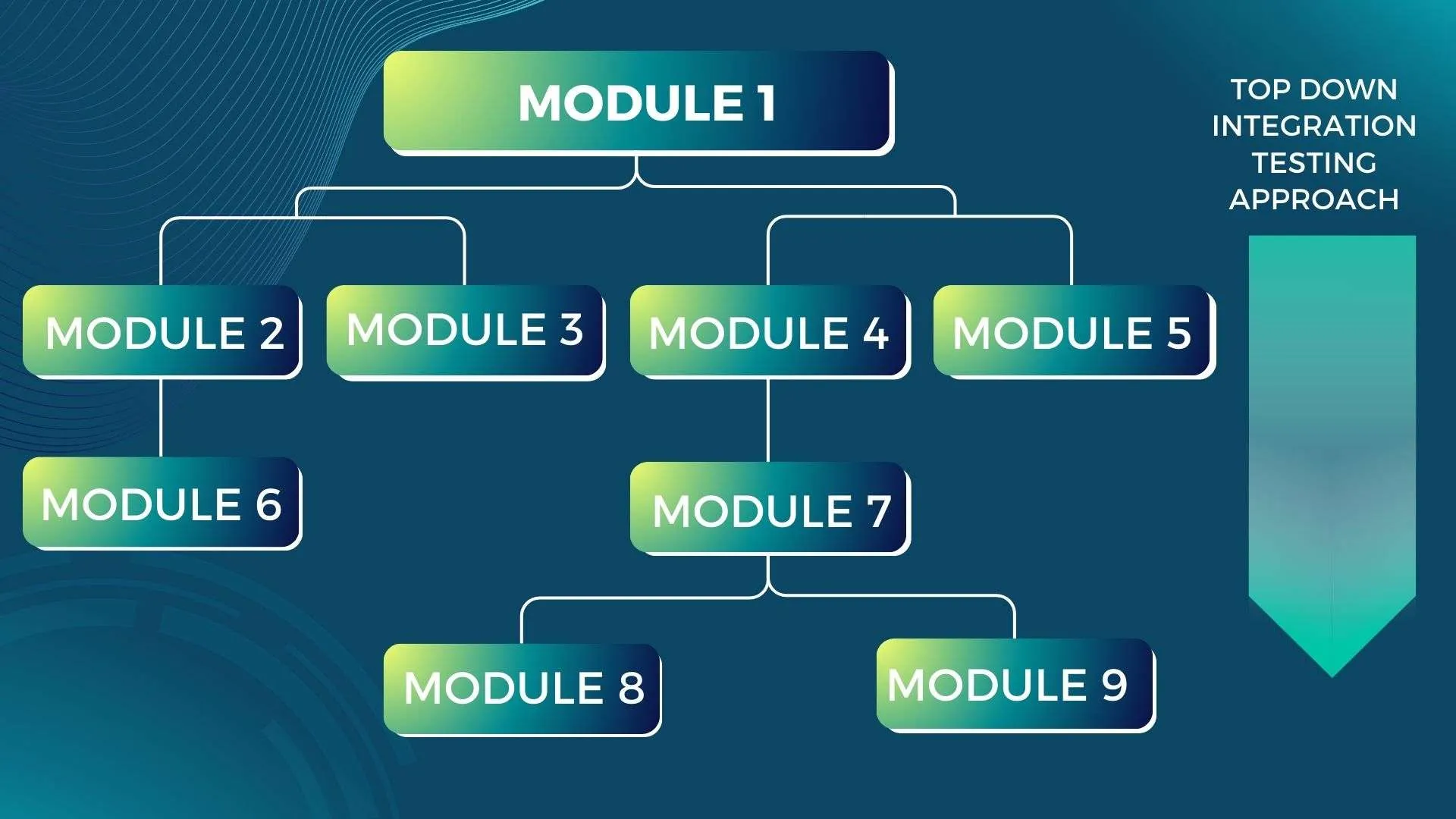

Top-Down Integration Testing

The top-down method of integration testing is also called incremental integration testing. In this approach, the modules at higher level are tested first, after that lower-level modules are considered for testing.

Integration of these modules also follows the same rule. Higher-level modules are considered to be main modules and others are called submodules. In this methodology, Stubs are used to stimulate submodules. If the submodule isn’t developed, Stub will work as its momentary replacement.

Key features of Top-Down Integration Testing:

  • Risk-based testing: Risky and critical testing parts of the project are verified early to remove potential risks.
  • System-centric approach: This approach focuses on the whole project, beginning from the top components.
  • High-level test cases are used: Test cases are made to monitor the functionality of higher-level modules.
  • Prior testing of high-level functions: Testing high-level features is prioritized to search for major issues easily.
  • Mock stubs/objects used: Placeholder stubs or objects stimulate lower-level modules while the software testing process starts
  • Quick approach: Testing higher-level components first will allow an efficient evaluation of the system's performance.
  • Integration testing becomes more detailed: Specific tests are organized when lower-level modules are integrated.

Bottom-Up Integration Testing

We think that the name of this methodology itself makes you understand how it functions. However, for clear understanding, here’s what is bottom-up integration testing:

Bottom-up Integration chooses the sub-modules and then transits to upward modules in the testing process. It cuts the requirements for stubs because lower-level modules are necessary to be available for integration testing before testing the top module.

However, in a few instances, where different modules are in the production phase and need a dummy prototype. In the bottom-up cases, drivers are used for integration testing instead of stubs. Drivers are the ‘calling programs’ and stubs act as called programs.

Key features of Bottom Up Integration Testing:

  • Quick Detection: in this approach, you can detect the defects earlier in primary components, which can be solved before the integration process
  • Component-Centric: This methodology of integration testing is like testing each component before integrating them into a larger system
  • Independent Testing process: Each component is tested individually and independently from each other, ensuring that it functions correctly in isolation.
  • Incremental Testing: The testing process moves incrementally from lower to higher-level modules.
  • Parallel Development: This tactic lets you proceed with the parallel development of project modules.
  • Easy Testing: Here you get an efficient and easy approach to testing.
  • Risk-Based Testing: This can be done in bottom-up testing to prioritize the testing process of high-risk modules.

Top-Down vs Bottom-Up Integration Testing: Key Differences

The primary difference between top-down and bottom-up integration testing is one moves from top to down and the other one moves from bottom to top while performing integration testing.

Here are other key differences between them:

Top-Down Approach

  • Tests the highest-level components first following then works down the patriarchy.
  • In this approach, stubs are used to stimulate the lower-level modules
  • It is less complex than the bottom-up approach
  • It’s a less data-intensive approach
  • The top-down approach mainly focuses on searching for and mitigating risks
  • It can be used to test complex and large ecosystems
  • You can use this approach to find and fix bugs in the early phase
  • Implementing this approach can be challenging in large and complex projects
  • Examples of top-down approach are- operating systems, databases, word-processing software, etc.
  • Here, the main module will call the submodules (stubs)
  • Stubs are used as replacements for some missing submodules
  • Implemented procedure/structured-oriented programming
  • Essentially helps in identifying errors in an earlier time
  • It’s simple to perform
  • Difficulty might occur when observing the output

Is Your App Crashing More Than It’s Running?

Boost stability and user satisfaction with targeted testing.

Bottom-up approach

  • Testing the lowest modules first and after that it works with upper modules
  • Here drivers are used to improve the higher-level modules
  • Its complexity is more than a top-down approach
  • It’s more data-intensive
  • This approach focuses on mitigating the risks during the testing process
  • It’s suited for testing less complex and smaller systems
  • You can use this approach of testing for projects that require a clear hierarchical structure
  • It ensures that the lower modules are functioning well
  • Sometimes, this process becomes time-consuming
  • Examples of bottom-up testing approaches are- device drivers, microcontrollers, and embedded systems.
  • Here, submodules are integrated with higher-level components
  • It uses drivers instead of top-level modules if any of them is missing
  • Advantageous for OOP
  • It helps in the easy identification of errors in lower levels
  • Easy observation and recording of results
  • It’s complex and data-driven
Aspect Similarities
Objective Both aim to ensure that integrated modules function correctly together and identify any issues in the interaction between integrated components.
Scope Both cover the integration phase of software testing, focusing on verifying the interaction between units, modules, or components.
Environment Both require a controlled testing environment where individual components can be integrated and tested systematically.
Error Detection Both methodologies are used to detect errors related to interface mismatches, data flow issues, and incorrect assumptions made by integrated components.
Incremental Approach Both use an incremental approach to integration, adding and testing components step-by-step rather than integrating everything at once.
Stubs and Drivers Both might use stubs and drivers to simulate the behavior of missing components, although the specific usage might differ (top-down uses stubs, bottom-up uses drivers).
Regression Testing Both require regression testing after each integration step to ensure new changes do not adversely affect the existing functionality.
Automation Potential Both can benefit from automation to execute repetitive test cases, manage test data, and ensure consistency in testing processes.

Key Takeaways from this Article

In the end, Integration testing is used as the 2nd level of testing right after unit testing. All systems modules that are developed, designed, and tested in the Unit testing stage will go through integration and further examination to verify compatibility errors. In integration testing, there are multiple approaches that you can adopt in your testing requirements, and two popular ones are bottom-up and top-down.

Both these types have their benefits and cons to help you test your project. After reading the key differences and features of both these approaches, we hope that you have understood which strategy will be most suitable for you.

As every software has different requirements, we cannot suggest a single approach that will be suitable for all projects. Sometimes it is top-down and sometimes the suitable approach can be bottom-up. So, be clear with your project needs, and choose the most suitable methodology accordingly.
